Introduction

LINDTIE is a tool designed to identify aberrant transcripts in cancer using long-read RNA-seq data generated by platforms such as Oxford Nanopore Technologies (ONT) and PacBio. It extends beyond canonical gene fusions to capture the full spectrum of cancer transcriptome rearrangements, including fusion, transcribed structural variant (TSV), and novel splice variant (NSV). The pipeline accepts raw transcriptome (RNA-seq) FASTQ files from case and control samples and produces TSV files containing the novel variants it identifies.

LINDTIE uses a hybrid strategy that integrates reference-free de novo assembly with reference-guided assembly, combined with differential transcript expression analysis, to uncover previously uncharacterised transcripts. The workflow consists of four core procedures: assembly, quantification, differential expression analysis, and annotation.

LINDTIE is implemented in Nextflow, providing users with enhanced control over pipeline execution, including the ability to interrupt runs, adjust parameters from the command line, and resume analyses from previous checkpoints.

Pipeline Overview

LINDTIE employs a one-to-N case–control design and a four-stage analysis workflow to identify aberrant transcripts from long-read RNA-seq data. Understanding this workflow helps you interpret results and troubleshoot issues.

Workflow Diagram

Installation + Configuration

Prerequisites

LINDTIE is built using Nextflow.

Before running the pipeline, ensure that the following are installed or available on your Linux-based system:

• Nextflow
• A container engine: Singularity / Apptainer (recommended for HPCs) or Docker

Installing from GitHub

Clone the LINDTIE repository:

git clone https://github.com/DavidsonGroup/LINDTIE.git

Configuration

Navigate to the LINDTIE base directory to begin configuring the pipeline:

cd LINDTIE

Edit the Nextflow configuration file (nextflow.config), located in the LINDTIE base directory:

i. Process Configuration (Executor, Queue, and Resource Profiles)

Under the process block in nextflow.config, you can specify the executor used by your HPC system, the queue to submit jobs to, and resource profiles for different types of tasks.

Select an HPC executor and queue:

Choose an appropriate Nextflow executor (e.g., slurm, pbs, sge, lsf, local, etc.) supported by your compute environment. The default configuration supplied with LINDTIE is optimized for WEHI's Milton HPC, which uses the SLURM workload manager. Refer to the Nextflow documentation for the full list of available executors.

Example (default SLURM configuration):

// Process execution configuration – modify as required
process {
  executor = 'slurm'
  queue  = 'regular'           // default SLURM queue
  cache  = 'lenient'
  errorStrategy = 'retry'      // default retry failed tasks
}

For further details on customizing Nextflow configuration files, see the official documentation.

Resource Profiles with Labels:

LINDTIE assigns resource requirements to tasks using Nextflow labels. The default settings allocate resources appropriate for typical HPC environments, but you may reduce or increase these values depending on your system’s available resources.

Example (default label-specific resource settings):

// Configuration for short-running, lightweight tasks
withLabel: 'process_short' {
  cpus   = 1
  memory = 4.GB              // 4 GB RAM
  time   = 1.h               // 1-hour time limit
}

// Configuration for moderately intensive tasks
withLabel: 'process_medium' {
  cpus   = 8
  memory = 16.GB             // 16 GB RAM
  time   = 8.h               // 8-hour time limit
}

// Configuration for long-running, resource-heavy tasks
withLabel: 'process_long' {
  cpus   = 16
  memory = 64.GB             // 64 GB RAM
  time   = 16.h              // 16-hour time limit
}

ii. Container Download Locations

LINDTIE runs every step inside a container, so the first time you run it Nextflow downloads 13 container images — roughly 3 GB in total. You only pay this cost once; later runs reuse the downloaded images.

Two separate caches are involved, and they are easy to confuse:

The second one is the common cause of a failed first run. It defaults to your home directory, which on most HPC systems has a much smaller disk quota than scratch. Downloading 13 images can exhaust that quota part-way through, and the run stops with an error like:

FATAL: While pulling image from oci registry: error fetching image:
       unable to Download Image: write /home/users/<user>/.singularity/cache/oras/tmp_383209531:
       disk quota exceeded

Setting NXF_SINGULARITY_CACHEDIR alone does not prevent this, because it controls only the first cache. To avoid it, point both at a filesystem with plenty of space (scratch is usually the right choice) before launching the pipeline:

# Where the finished images are kept, so later runs do not download them again.
# Some HPC modules already set this for you -- check with: echo $NXF_SINGULARITY_CACHEDIR
export NXF_SINGULARITY_CACHEDIR=/path/to/scratch/nextflow/singularity_cache

# Where Singularity writes temporary files while downloading.
# This is the one that defaults to your home directory.
export SINGULARITY_CACHEDIR=/path/to/scratch/nextflow/singularity_stage
export APPTAINER_CACHEDIR="$SINGULARITY_CACHEDIR"  # for clusters that use Apptainer

mkdir -p "$NXF_SINGULARITY_CACHEDIR" "$SINGULARITY_CACHEDIR"

Replace /path/to/scratch with a directory you can write to that has several GB free. The included test_case/run_LINDTIE.sh script already contains these lines as an example.

Setting Up References

Download the compressed pre-built reference package from Zenodo (1.06GB):

curl -O https://zenodo.org/records/18531809/files/LINDTIE_ref.tar.gz

# decompress the tar.gz file and remove the tar.gz file
tar xzf LINDTIE_ref.tar.gz && rm LINDTIE_ref.tar.gz

This will generate a ref directory containing the seven required reference files. Ensure that the ref directory is placed inside the LINDTIE base directory:

LINDTIE/
└── ref/
    ├── chess3.0_with_HTLV1_HPV_HBV_HIV1_HIV2_EBV.fa
    ├── chess3.0_with_HTLV1_HPV_HBV_HIV1_HIV2_EBV.gtf
    ├── chess3.0_with_HTLV1_HPV_HBV_HIV1_HIV2_EBV.info
    ├── Cosmic_CancerGeneCensus_v103_GRCh38_tier_fusion.tsv
    ├── hg38_splice_junctions.bed
    ├── hg38_with_HTLV1_HPV_HBV_HIV1_HIV2_EBV.fa
    └── tx2gene.txt

The reference comprises both human and viral sequences, including viruses known to integrate into the host genome, such as HTLV-1 (NC_001436.1), HPV (NC_027779.1), HBV (NC_003977.2), HIV-1 (NC_001802.1), HIV-2 (NC_001722.1), and EBV (NC_009334.1).

Running LINDTIE

In the directory where you will run LINDTIE, create the required cases and controls subdirectories:

mkdir -p cases
mkdir -p controls

Input Files

Allocate the long-read RNA-seq data in FASTQ or FASTA format (can be gzipped) into the appropriate directories for your case and control samples.

Cases refer to the cancer samples in which you want to identify variants, while controls are used as the reference for comparison. Ideally, control samples should be benign tissue of the same type as the primary tumour. If this is not feasible, such as in blood cancers, acceptable alternatives include remission samples or samples from other individuals, ideally of the same cancer type.

Including more controls increases statistical power; aim for a minimum of 1 control, with 2-5 controls being optimal.

Run LINDTIE with Nextflow

Run LINDTIE with one of the following commands:

nextflow run LINDTIE/main.nf -params-file LINDTIE/params.yaml -profile singularity

nextflow run LINDTIE/main.nf -params-file LINDTIE/params.yaml -profile docker

You can also run nextflow run LINDTIE/main.nf --help to see all available options and parameters.

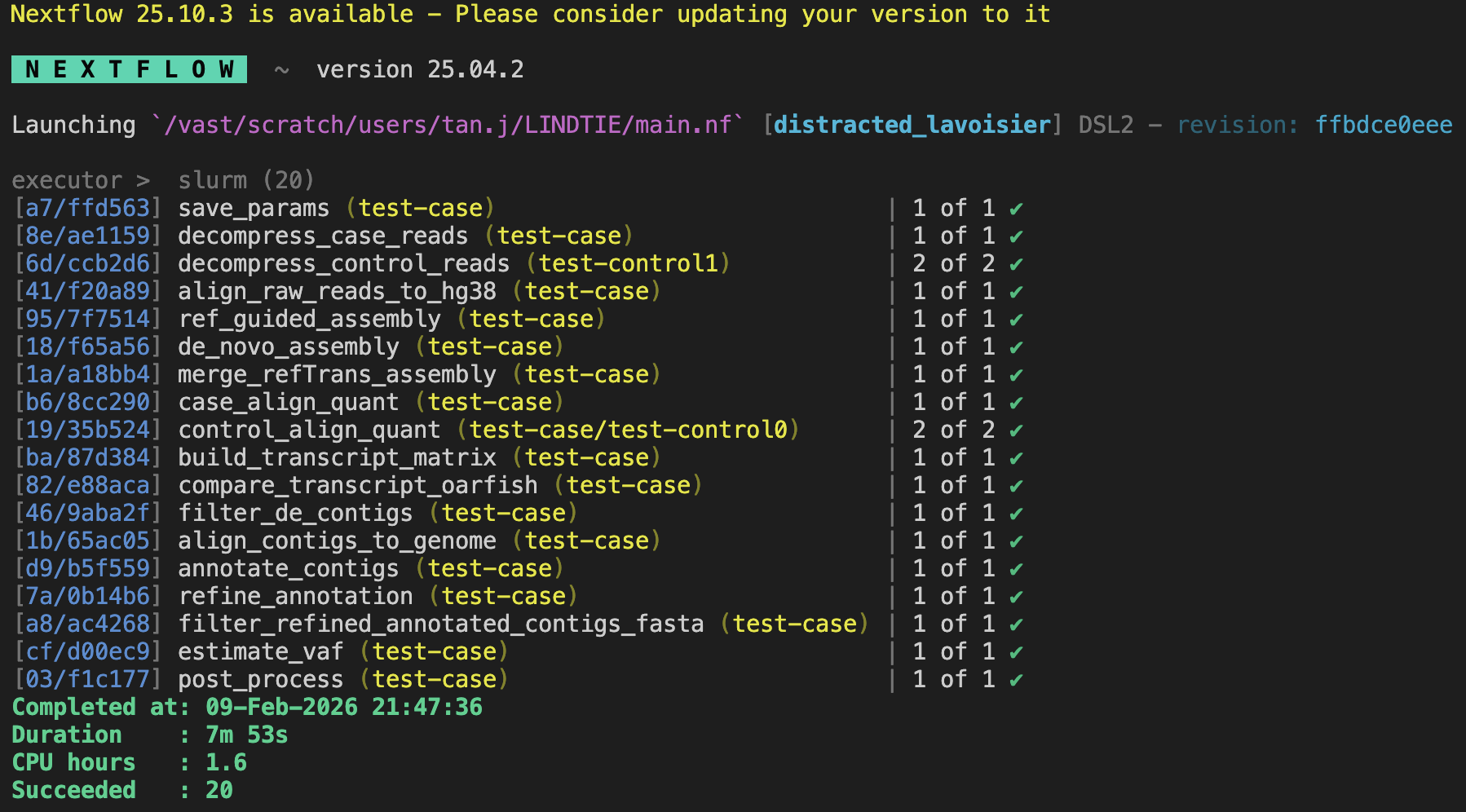

Submitting the Nextflow Script as a Job

A more effective approach than launching the Nextflow driver job from the login node is to wrap the Nextflow run command in a script and submit the workflow as a job.

A run_LINDTIE.sh template bash script is provided in the test_case directory:

#!/bin/bash

#SBATCH --job-name=run_LINDTIE
#SBATCH --partition=regular
#SBATCH --ntasks=1
#SBATCH --ntasks-per-node=1
#SBATCH --cpus-per-task=1
#SBATCH --mem=8G
#SBATCH --time=24:00:00
#SBATCH --mail-type=BEGIN,END,FAIL
#SBATCH --mail-user=your-email@example.com
#SBATCH --output=script_output/%x_%J.out
#SBATCH --error=script_output/%x_%J.err

# Exit on the first failure. Without this, a broken environment still exits 0 and
# SLURM reports the job as successful despite having done nothing.
set -euo pipefail

# `module` is a shell function, and sbatch runs a non-login shell, so the module
# system must be initialised explicitly. Adjust for your site if needed
# (Lmod clusters use /usr/share/lmod/lmod/init/bash).
source /etc/profile.d/modules.sh

module load nextflow/25.04.2 singularity/4.1.5

# ----------------------------------------------------------------------------
# Where container images are downloaded
#
# LINDTIE runs each step inside a container, so the first run downloads 13
# container images (roughly 3 GB in total). Two separate caches are involved:
#
#   1. The finished images. On this cluster the `nextflow` module already
#      places these on scratch for you (via NXF_SINGULARITY_CACHEDIR), so
#      there is nothing to do. On other systems, set that variable yourself.
#
#   2. A temporary staging area that Singularity uses *while* downloading.
#      This one defaults to your home directory (~/.singularity/cache), which
#      usually has a small disk quota. Once it fills up, downloads fail
#      part-way through with "disk quota exceeded".
#
# The lines below move that staging area onto scratch, where there is room.
# Change the path to somewhere with plenty of free space on your own system.
# It is only needed while downloading, so it is safe to delete afterwards.
# ----------------------------------------------------------------------------
export SINGULARITY_CACHEDIR=/vast/scratch/users/$USER/nextflow/singularity_stage
export APPTAINER_CACHEDIR="$SINGULARITY_CACHEDIR"  # for clusters that use Apptainer
mkdir -p "$SINGULARITY_CACHEDIR"

# modify the path to the LINDTIE base directory
LINDTIE_dir=/path/to/your/LINDTIE

nextflow run "$LINDTIE_dir/main.nf" -params-file "$LINDTIE_dir/params.yaml" -profile singularity

Fine Tuning Parameters

Adjust these parameters based on your sample characteristics and analysis requirements. Parameters marked with ⭐ are commonly modified.

Supporting-Read Counting Parameters

These control count_supporting_reads, which counts variant-supporting reads directly from the genome alignment (see Supporting-read counting). The defaults were tuned against simulated and real ONT data and most users should not need to change them. The reference GTF used is the existing tx_annotation parameter.

Configuration Methods

There are two ways to configure the parameters for LINDTIE:

Option 1: Edit the params.yaml file before running

• Open the params.yaml file located in the LINDTIE base directory.
• Modify any parameters as needed.
• Save the file and then run LINDTIE.

Option 2: Override parameters at runtime using command line arguments

• Run LINDTIE with the desired parameters using the command line.

# Default parameters for the workflow
# Assembly Mode: 'hybrid', 'denovo', 'denovo_subset', or 'ref_guided'
assembly_mode: 'hybrid'

# Tool Presets
# minimap2 presets (passed to -ax):
#   'map-ont' : Oxford Nanopore genomic reads (default)
#   'map-pb'  : PacBio CLR genomic reads
#   'map-hifi': PacBio HiFi/CCS genomic reads (v2.19+)
#   'lr:hq'   : Nanopore Q20 genomic reads (v2.27+)
minimap2_preset: 'map-ont'

# rnabloom2 presets:
#   ''       : Leave empty for ONT (default)
#   '-lrpb'  : For PacBio
rnabloom2_preset: ''

subset_count: null               # NULL for no subsetting, otherwise the number of reads to subset to
detect_viral_integration: false  # true or false (default: false)
RUN_DE: true                     # true or false (default: true)
fdr: 0.05                        # default 0.05
min_cpm: 0.5                     # default 0.5
min_logfc: 2                     # default 2
min_clip: 20                     # default 20
min_gap: 7                       # default 7
min_match: '30,0.3'              # default '30,0.3'
splice_motif_mismatch: 1         # default 1
oarfish_num_bootstraps: 10       # default 10
oarfish_growth_rate: 0.5         # oarfish -k; default 0.5
gene_filter: NULL                # default NULL (e.g. "TP53,BRCA2")
var_filter: NULL                 # default NULL (e.g. "DEL,INS")
single_sample_min_vaf: 0.1       # default 0.1
single_sample_cosmic_filter: true # true or false (default: true)
max_fisher_p_val: 0.05           # default 0.05

# Alignment-based supporting-read counting (count_supporting_reads)
supp_read_window: 300            # bp either side of a breakpoint to fetch candidate reads
supp_read_min_anchor: 20         # min aligned bp on the REFERENCE side of a boundary
supp_read_through_depth: 100     # bp a read must stay aligned INTO the novel segment
supp_read_min_gap: 25            # merge alignment gaps <= this (absorb ONT indel noise)
supp_read_gap_merge: 30          # merge D/N ops separated by <= this
supp_read_tol: 35                # max breakpoint position tolerance
supp_read_bp_tol: 10             # breakpoint tolerance for a clip position (UN)
supp_read_near_canonical: 10     # near an annotated junction -> reliability=low
supp_read_min_clip: 25           # min soft/hard-clip length for UN support
supp_read_inside_window: 250     # bp past the counted junction (NE/EE)
supp_read_ins_tol: 100           # position tolerance for insertions (INS/ITD/PTD)
supp_read_split_tol: 20000       # max split-read supplementary distance (FUS/IGR)


nextflow run LINDTIE/main.nf \
    -params-file LINDTIE/params.yaml \
    -profile singularity \
    --rnabloom2_preset "lrpb" \
    --minimap2_preset "map-pb" \
    --assembly_mode "denovo"

Output

After running LINDTIE, a results directory (<caseName>_output) will be created. This directory is organized by analysis steps, with the final results for the sample stored in the FinalOutput folder:

<caseName>_output/
├── 01-Assembly
├── 02-Quantification
├── 03-DifferentialExpression
├── 04-Annotation
├── FinalOutput
└── run_parameters.log

FinalOutput Results

The final results produced by LINDTIE are located in <caseName>_output/FinalOutput/, which contains the following files:

<caseName>_output/FinalOutput/
├── log
├── refined_annotated_contigs.bam
├── refined_annotated_contigs.bam.bai
├── refined_annotated_contigs.fasta
├── refined_annotated_contigs.vcf
├── supporting_reads.tsv
├── vaf_estimates.txt
├── <caseName>_all_variants_ranked_results.tsv
├── <caseName>_discarded_results.tsv
└── <caseName>_results.tsv

Primary Results: <caseName>_results.tsv

This file is the primary result table. Variants with multiple annotations are collapsed, meaning each contig appears as a single row with consolidated information.

Output File Column Descriptions

Supporting-Read Counting

LINDTIE reports two independent measures of how much read evidence a variant has, and neither replaces the other:

• num_reads_case comes from Oarfish and is a whole-contig abundance estimate. Because it describes the entire contig rather than the breakpoint, it can overstate support for the specific variant.
• supporting_read_count, spanning_reads and junction_VAF come from the count_supporting_reads step, which reads the genome alignment directly — the same alignment IGV displays. A read counts as supporting only if its alignment reproduces the variant's signature at the breakpoint, so these numbers match what you see when you open the BAM in IGV.

Reconciling the two is left to the analyst. The per-variant table is also written out in full as FinalOutput/supporting_reads.tsv, with a log at FinalOutput/log/supporting_reads.log. Because <caseName>_results.tsv keeps one row per contig, the complete per-variant counts live in <caseName>_all_variants_ranked_results.tsv; the counts the collapse would otherwise hide are preserved in other_supporting_read_count.

This step requires a genome alignment, so it is skipped in denovo assembly mode, where the supporting-read columns are left blank.

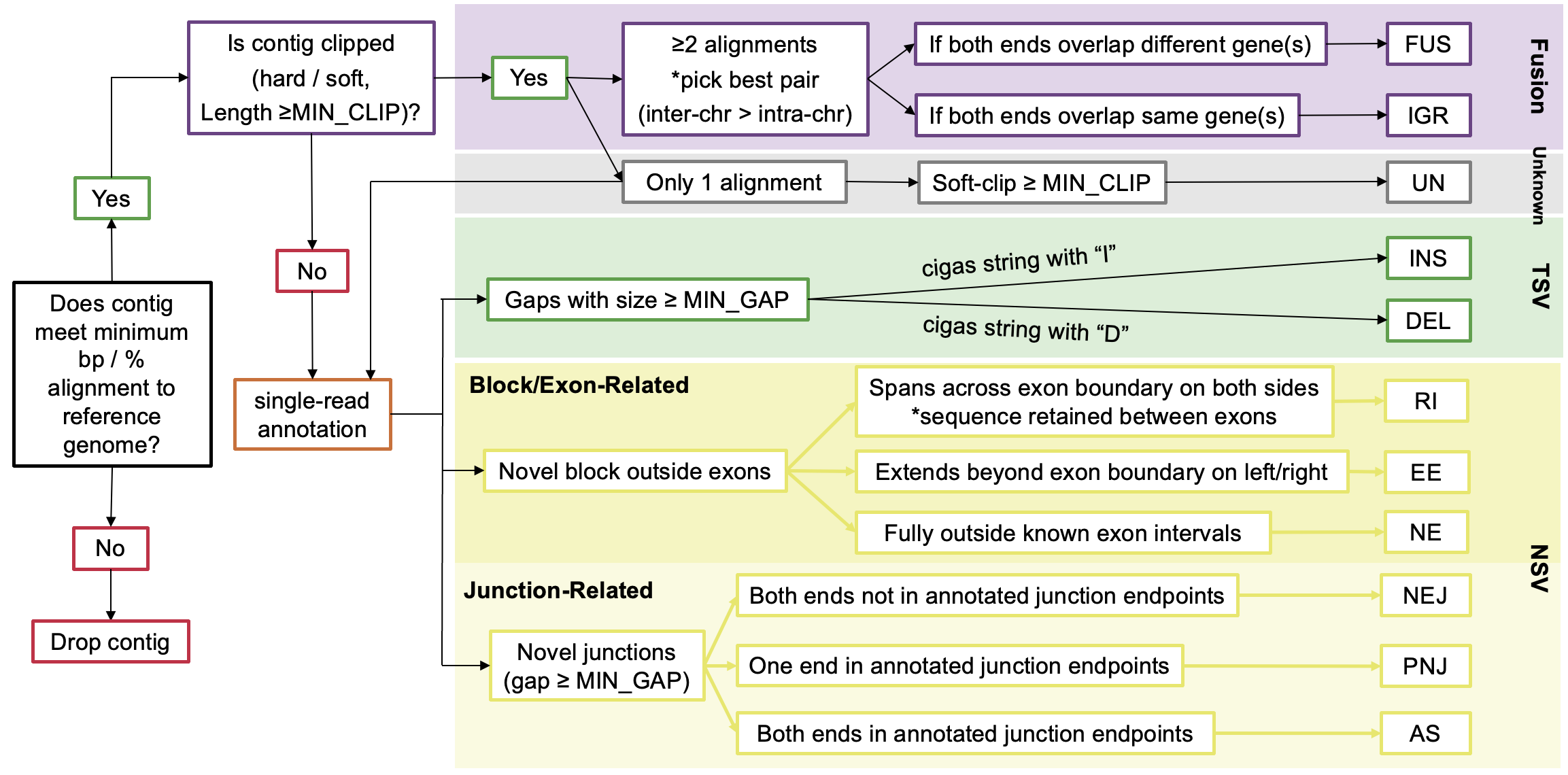

How a read is counted, by variant type

The support_signature column records which rule was applied:

Accuracy rests on three structural requirements rather than on threshold tuning: the read's feature must be in the right place (position tolerance), be the right size (a 17 bp deletion is not a 1 bp ONT indel), and not be better explained by a competing reference structure — an annotated intron or a reference exon. The last two need the reference GTF (tx_annotation); without it the step falls back to position-only matching and marks the affected rows reliability=low.

<caseName>_all_variants_ranked_results.tsv

This file is an expanded version of the <caseName>_results.tsv file. This table lists all variant annotations individually, without collapsing (i.e., a contig may appear in multiple rows if it has multiple annotations). It includes all 55 columns present in <caseName>_results.tsv — including the supporting-read and Fisher enrichment columns, so this is where the complete per-variant supporting_read_count values live — plus two additional columns:

<caseName>_discarded_results.tsv

This file contains variants filtered out due to low-complexity sequences, using the same column layout as the primary results table (supporting-read and Fisher enrichment columns included). Specifically, variants are placed in this table if the seq1 or seq2 columns contain:

• a polyA or polyT stretch of ≥ 10 bp, or
• a perfect dinucleotide repeat of ≥ 10 repeats (i.e., 20 bp total).

Visualization Files

The following files are useful for inspection in IGV to visualize alignments and examine the refined contig sequences:

• refined_annotated_contigs.bam / .bam.bai: BAM and BAM index files that contain the aligned refined transcript sequences for visualization.
• refined_annotated_contigs.fasta: A FASTA file that contains the refined transcript sequences used in the analysis.
• refined_annotated_contigs.vcf: A VCF file that lists the refined variant calls.

Intermediate Files Generated at Each Step

LINDTIE produces several intermediate files throughout the pipeline. These files can be useful for troubleshooting, quality checks, or deeper inspection of specific steps.

<caseName>_output/
├── run_parameters.log
├── 01-Assembly
│   ├── denovo_read_counts.log (assembly_mode = hybrid or denovo or denovo_subset)
│   ├── rnabloom.transcripts.fa (assembly_mode = hybrid or denovo or denovo_subset)
│   ├── read_counts_summary.log (assembly_mode = hybrid or ref_guided or denovo_subset)
│   ├── confident_mapped.bam & confident_mapped.bam.bai (assembly_mode = hybrid or ref_guided or denovo_subset)
│   ├── reads_all_sorted.bam & reads_all_sorted.bam.bai (assembly_mode = hybrid or ref_guided or denovo_subset)
│   ├── stringtie2_assembly.fa (assembly_mode = hybrid or ref_guided or denovo_subset)
│   └── stringtie2_assembly.gtf (assembly_mode = hybrid or ref_guided or denovo_subset)
├── 02-Quantification
│   ├── cases
│   │   ├── <caseName>.infreps.pq
│   │   ├── <caseName>.meta_info.json
│   │   └── <caseName>.quant
│   └── controls
│       ├── <controlName>.infreps.pq
│       ├── <controlName>.meta_info.json
│       └── <controlName>.quant
├── 03-DifferentialExpression
│   ├── DE_contigs.fasta
│   ├── DE_contigs_mapped_to_hg38.bam
│   ├── DE_contigs_mapped_to_hg38.bam.bai
│   ├── DE.log
│   ├── DE_MD_plot.png
│   ├── DE_MDS_plot.png
│   ├── DE_QLDisp_plot.png
│   ├── DE_transcript_full_results.txt
│   └── DE_transcript_significant.txt
└── 04-Annotation
    ├── annotated_contigs.bam
    ├── annotated_contigs.bam.bai
    ├── annotated_contigs_info.tsv
    ├── annotated_contigs.vcf
    └── annotation.log

run_parameters.log

A log file that contains the run parameters used to run LINDTIE.

01-Assembly

• denovo_read_counts.log: A log file that contains the read counts for the de novo assembly. Only present when assembly_mode = denovo or denovo_subset.
• rnabloom.transcripts.fa: A FASTA file that contains the assembled transcript sequences produced by RNA-Bloom2. Only present when assembly_mode = hybrid or denovo or denovo_subset.
• read_counts_summary.log: A log file that contains the read counts summary. Only present when assembly_mode = hybrid or ref_guided or denovo_subset.
• confident_mapped.bam: A BAM file that contains the confident mapped reads. Only present when assembly_mode = hybrid or ref_guided or denovo_subset.
• reads_all_sorted.bam: A BAM file that contains all the reads mapped to the reference genome. Only present when assembly_mode = hybrid or ref_guided or denovo_subset.
• stringtie2_assembly.fa: A FASTA file that contains the assembled transcript sequences produced by StringTie2. Only present when assembly_mode = hybrid or ref_guided or denovo_subset.
• stringtie2_assembly.gtf: A GTF file that contains the assembled transcript annotations produced by StringTie2. Only present when assembly_mode = hybrid or ref_guided or denovo_subset.
• read_counts_summary.log: A log file that contains the read counts summary. Only present when assembly_mode = hybrid or ref_guided or denovo_subset.

02-Quantification

Files generated by Oarfish for both the case and control samples:

• <sampleName>.quant: A tab-separated file that contains the quantified transcripts along with their lengths, metadata, and the estimated number of reads originating from each transcript.
• <sampleName>.meta_info.json: A JSON file that contains the parameters used to run Oarfish and other sample-level metadata excluding transcript quantifications.
• <sampleName>.infreps.pq: A Parquet file that contains estimated transcript counts, with each row representing a transcript and each column representing an inferential replicate.

03-DifferentialExpression

Files containing results from differential expression analysis of assembled transcripts:

• DE_contigs.fasta: A FASTA file that contains the transcripts sequences identified as significantly differentially expressed.
• DE_contigs_mapped_to_hg38.bam / DE_contigs_mapped_to_hg38.bam.bai: BAM and BAM index files that contain the alignments of differentially expressed transcripts to the hg38 reference genome for visualization.
• DE.log: A log file that contains the log messages from the differential expression analysis.
• DE_MD_plot.png: A PNG file that contains the mean–difference (MD) plot of expression changes.
• DE_MDS_plot.png: A PNG file that contains the multidimensional scaling (MDS) plot showing sample relationships.
• DE_QLDisp_plot.png: A PNG file that contains the quasi-likelihood dispersion diagnostic plot.
• DE_transcript_full_results.txt: A text file that contains the complete statistical results for all transcripts tested.
• DE_transcript_significant.txt: A text file that contains the subset of transcripts identified as significantly differentially expressed.

04-Annotation

Files containing structural and functional annotations of transcripts:

• annotated_contigs.bam / annotated_contigs.bam.bai: BAM and BAM index files that contain the annotated transcript alignments generated from alignment-based analysis.
• annotated_contigs_info.tsv: A tab-separated file that contains metadata and functional annotations for each transcript.
• annotated_contigs.vcf: A VCF file that contains variant calls identified during the annotation process.
• annotation.log: A log file that contains log messages from the annotation workflow.

The annotation stage also produces two tables that are published straight to FinalOutput/: vaf_estimates.txt (per-contig TPM, wild-type expression, VAF and the Fisher enrichment statistics) from the estimate_vaf step, and supporting_reads.tsv (per-variant alignment-verified read counts) from the count_supporting_reads step.

LINDTIE's Variant Classification

The following are the variant types identified and classified by LINDTIE:

LINDTIE's variant classification rules and filtering logic are based on the following criteria:

LINDTIE's Variant-Specific Criteria

The following are the variant-specific criteria used by LINDTIE to classify the variants:

[1] Spliced Contig: Any alignment containing a splice (≥1 gap)

[2] Spliced Exon: EE/NE variants that have adjacent supporting junctions, and for selected junction variants themselves.

[3] Valid Motif: True when the 2-bp splice motifs at the relevant boundaries match canonical GT-AG (or CT-AC on the opposite strand) within the allowed mismatch tolerance

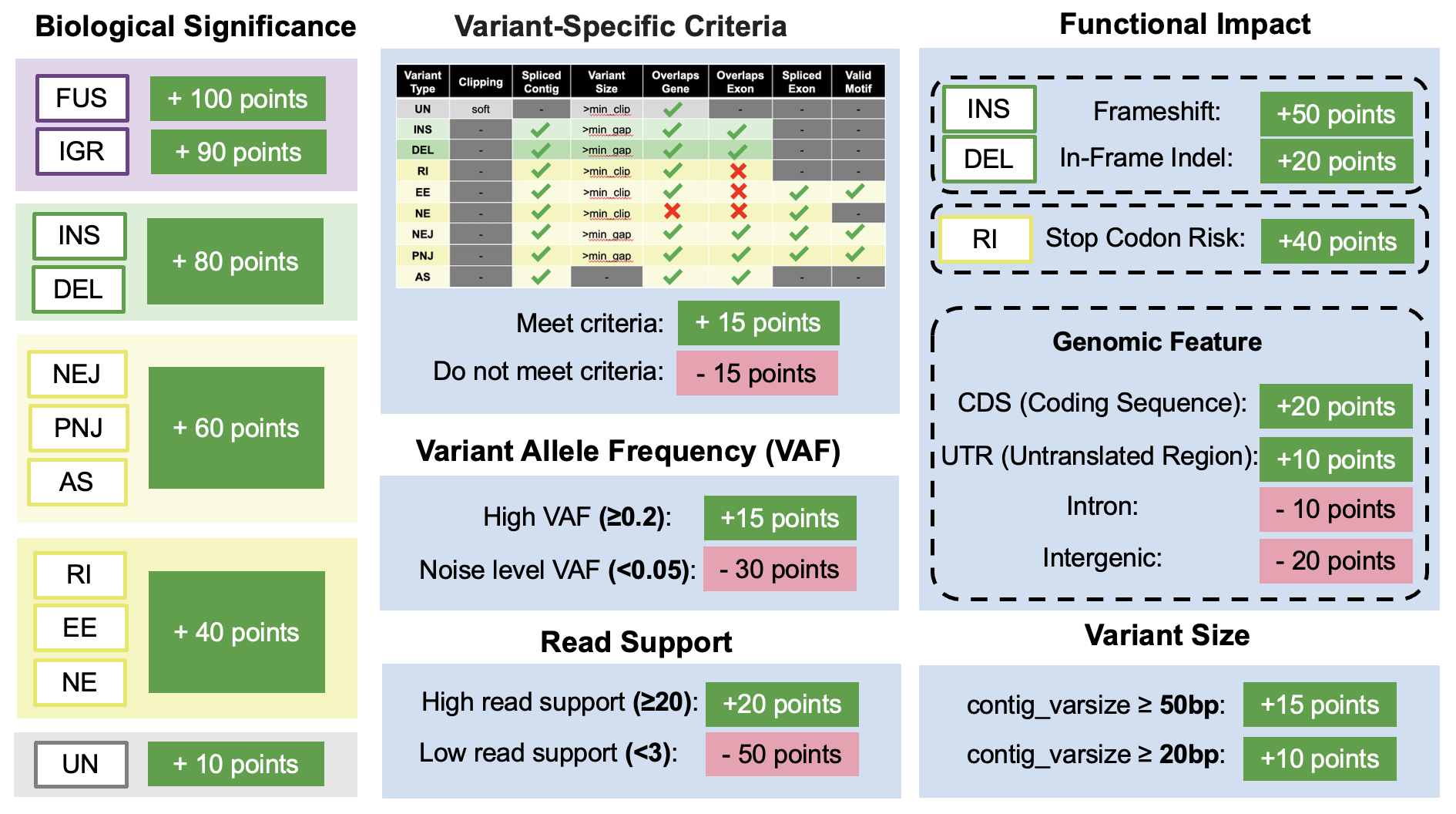

LINDTIE’s Scoring System

LINDTIE's scoring system is based on the following criteria:

The evidence component of the score uses num_reads_case and VAF_sum_WT_TPM, so scoring is applied only after the differential expression and VAF tables have been merged in — before that, both values would be unavailable and the term would contribute nothing.

Resume Your Run

You can easily resume your run in case of changes to the parameters or inputs using -resume. Nextflow will try to not recalculate steps that are already done:

nextflow run LINDTIE/main.nf -params-file LINDTIE/params.yaml -resume

Nextflow will need access to the working directory where temporary calculations are stored. Per default, this is set to work but can be adjusted via -w /path/to/any/workdir. In addition, the .nextflow.log file is needed to resume a run, thus, this will only work if you resume the run from the same folder where you started it.

Testing LINDTIE

Example test data is included to help you quickly verify that the pipeline is running correctly. The test set contains one case sample and two control samples, located in the test_case directory under the LINDTIE base directory:

LINDTIE/
└──test_case/
		├── cases
		│   └── test-case.fastq.gz
		├── controls
		│   ├── test-control0.fastq.gz
		│   └── test-control1.fastq.gz
		└── run_LINDTIE.sh


You can test LINDTIE either by running the following command directly in the terminal or by executing the provided run_LINDTIE.sh script (make sure to modify the path):

# modify the path to the LINDTIE base directory
LINDTIE_dir=/path/to/your/LINDTIE

nextflow run $LINDTIE_dir/main.nf -params-file $LINDTIE_dir/params.yaml -profile singularity

Approximate run time: 12 minutes, once the containers have been downloaded. Allow extra time on the first run, when Singularity or Docker must pull the images.

Once LINDTIE has finished running, you should see output on the terminal similar to the following:

View the collapsed results at: test-case_output/FinalOutput/test-case_results.tsv

The table below summarizes the number of variants detected for each variant type in the test case:

Examples of Use

Best Practices

Full List of Tools Used in LINDTIE

Listed below are all software tools and version numbers packaged within the Nextflow container used by LINDTIE:

bioconda::rnabloom=2.0.1
bioconda::gffread=0.12.7
bioconda::stringtie=2.2.3
bioconda::minimap2=2.30
bioconda::samtools=1.22
bioconda::bbmap=39.52
bioconda::oarfish=0.10.1
bioconda::bio=1.8.0
bioconda::pysam=0.23.3
bioconda::pybedtools=0.12.0
bioconda::bioconductor-edger=4.4.0
bioconda::bioconductor-tximport=1.34.0
conda-forge::pandas=2.3.0
conda-forge::numpy=2.3.0
conda-forge::intervaltree=3.1.0
conda-forge::r-dplyr=1.1.4
conda-forge::r-data.table=1.17.6
conda-forge::r-tidyr=1.3.2
conda-forge::r-jsonlite=2.0.0
conda-forge::r-readr=2.1.5
conda-forge::r-arrow=19.0.1

Glossary of Terms

This glossary defines key terms used throughout the LINDTIE documentation and output files.

General Terms

Aberrant Transcript

A transcript that differs from the normal reference transcriptome, potentially caused by genomic rearrangements, novel splicing, or other alterations. In cancer, aberrant transcripts may drive tumor growth or serve as biomarkers.

Contig

A contiguous sequence assembled from overlapping reads. In LINDTIE, contigs represent assembled transcript sequences that are then analyzed for variants.

De Novo Assembly

The process of assembling reads into contigs without using a reference genome. This approach can detect novel sequences not present in the reference.

Fusion Transcript

A chimeric RNA molecule containing sequences from two different genes, typically resulting from chromosomal rearrangements. Examples include BCR-ABL in CML and EML4-ALK in lung cancer.

Long-read RNA-seq (lrRNA-seq)

RNA sequencing using technologies that produce reads thousands of bases long (ONT, PacBio), enabling full-length transcript sequencing and better detection of structural variants.

Splice Motif

The conserved sequence at splice junctions. The canonical splice motif is GT-AG (GT at the 5' donor site, AG at the 3' acceptor site). LINDTIE validates splice junctions against known motifs.

Statistical Terms

CPM (Counts Per Million)

A normalization method that scales raw read counts to per-million reads, allowing comparison between samples with different sequencing depths. Formula: CPM = (read count / total reads) × 1,000,000

FDR (False Discovery Rate)

The expected proportion of false positives among all significant results. An FDR of 0.05 means 5% of significant results are expected to be false positives. Lower FDR = higher confidence.

logFC (Log Fold Change)

The log2-transformed ratio of expression between case and control samples. A logFC of 2 means 4x higher expression in cases; logFC of -2 means 4x lower expression in cases.

P-value

The probability of observing the data (or more extreme) if there is no true difference between groups. Lower p-values indicate stronger evidence against the null hypothesis.

TPM (Transcripts Per Million)

A normalization method that accounts for both sequencing depth and transcript length, making values comparable across samples and genes. More appropriate than CPM for comparing expression levels of different transcripts.

VAF (Variant Allele Frequency)

The proportion of reads supporting the variant allele versus the total reads at that position. Higher VAF suggests the variant is present in more cells (clonal) rather than a subclonal event.

Output Field Terms

CIGAR String

A compact representation of how a sequence aligns to a reference. Characters include: M (match/mismatch), I (insertion), D (deletion), N (skipped region/intron), S (soft clip). Example: "100M50N100M" = 100 bases match, 50 base intron, 100 bases match.

Benchmarking

Performance comparisons

Output

Understanding results

Benchmarking & Performance

Troubleshooting

Frequently Asked Questions

Changelog

This page documents all notable changes to LINDTIE. The format is based on Keep a Changelog, and this project adheres to Semantic Versioning.

v0.2.0

Released: 2026

Added

• Alignment-based supporting-read counting (count_supporting_reads): counts, per variant, the case reads whose alignment carries the variant's signature at the breakpoint — the same evidence IGV displays — independently of Oarfish's whole-contig abundance. Adds the supporting_read_count, supporting_read_count_reliability, other_supporting_read_count, spanning_reads and junction_VAF columns, and publishes FinalOutput/supporting_reads.tsv. Skipped in denovo assembly mode, which has no genome alignment.
• Fisher's exact enrichment test for each variant, comparing case and control read counts per gene. Adds the fisher_p_val, odds_ratio, case_gene_count_wt, control_gene_count_wt, control_contig_count and control_gene_count_total columns, and the max_fisher_p_val parameter (default 0.05).
• VAF_sum_WT_TPM and sum_WT_TPM: a variant allele frequency whose wild-type denominator is the sum of the partner genes' expression, which matters for multi-gene events such as fusions.
• single_sample_cosmic_filter parameter (default true): the COSMIC tier 1/2 requirement in single-sample mode can now be switched off to retain variants outside the Cancer Gene Census.
• oarfish_growth_rate parameter (default 0.5), exposing Oarfish's --growth-rate.
• Twelve supp_read_* parameters controlling supporting-read counting.
• Per-sample TPM in the differential expression step (via tximport), plus a case-vs-control TPM-ratio filter requiring a fold change of at least 2^min_logfc against every control. Adds TPM_<sample> and TPM_ratio_* columns to the DE result tables.
• vaf_estimates.txt is now published to FinalOutput/.

Changed

• Oarfish upgraded from 0.8.1 to 0.10.1. The case quantification container no longer bundles qualimap, which was never invoked.
• Results column order reorganised: breakpoint and genomic-feature columns are grouped together, read-support and statistical columns follow, and identifier and sequence columns move to the end.
• VAF is now computed for all annotated contigs rather than only those flagged as variants of interest, so read counts and VAF are no longer missing for lower-ranked variants.
• Variant scoring now runs after the differential expression and VAF tables are merged in. Previously the read-count and VAF terms always saw their zero defaults, applying a constant penalty to every row and contributing no information to the ranking.
• An empty result set now emits the same header as a populated run, instead of a bare empty file.

Removed

• VAF, mean_WT_TPM and is_coding columns from the results tables (see the note above).

Fixed

• RUN_DE fallback never took effect. When no control reads were present the pipeline logged that it was switching to single-sample mode but then ran the DE path anyway, because Nextflow silently ignores reassignment of params inside a workflow. The effective run mode is now derived from the control reads actually found, and run_parameters.log records the value the run actually used.
• COSMIC tier matching silently failed when the tier column contained any missing values: pandas then inferred it as floating point, so tiers arrived as "1.0" and never matched the expected "1". Tier values are now normalised.
• The Fisher filter is now disabled automatically in single-sample mode. Without controls every p-value is 1, so any threshold below 1 would have discarded every variant.
• The MDS plot is skipped below three samples, and the QL dispersion plot when the quasi-likelihood fit is unavailable, instead of failing the differential expression step.

v0.1.0 - Initial Release

Released: 2025

Added

• Initial release of LINDTIE pipeline
• De novo assembly using RNA-Bloom for long-read data
• Quantification with Oarfish and minimap2 alignment
• Differential expression analysis between case and control samples
• Comprehensive variant annotation system
• Support for Oxford Nanopore Technologies (ONT) data
• Support for PacBio long-read data
• Nextflow-based workflow for HPC environments
• Docker and Singularity container support
• Configurable resource profiles (short, medium, long processes)
• TSV output with ranked variant results

Tool Versions

• RNA-Bloom2: 2.0.1
• minimap2: 2.30
• samtools: 1.22
• Oarfish: 0.10.1
• pandas: 2.3.0
• bio: 1.8.0
• pysam: 0.23.3
• pybedtools: 0.12.0
• edgeR: 4.4.0
• tximport: 1.34.0
• numpy: 2.3.0
• intervaltree: 3.1.0
• dplyr: 1.1.4
• data.table: 1.17.6
• jsonlite: 2.0.0
• readr: 2.1.5
• arrow: 19.0.1

Version Policy

LINDTIE follows semantic versioning (MAJOR.MINOR.PATCH):

• MAJOR: Incompatible changes to input/output format or parameters
• MINOR: New features added in a backward-compatible manner
• PATCH: Bug fixes and minor improvements

Migration Guides

Citing LINDTIE

If you use LINDTIE in your research, please cite:
